Junction Box Compatibility: Ensuring a Perfect Fit for Your Smart Switch

March 19, 2025

1. Definition

Junction box compatibility refers to the ability of a smart switch to fit and function properly within the existing electrical junction box in your home. A junction box is the enclosure that houses electrical wiring connections, protecting them from damage and ensuring safety.

Smart switches must be compatible with the dimensions, wiring layout, and standards of the junction box to ensure proper installation and operation.

2. Key Takeaways

Junction box compatibility ensures the smart switch fits securely in your home’s existing electrical setup.
It’s crucial to check dimensions, wiring configurations, and electrical standards before installation.
Compatibility helps avoid installation challenges and ensures safe, efficient operation.
Modern smart switches are designed to work with most standard junction boxes.

3. Why Junction Box Compatibility Is Important

Ease of Installation
A compatible junction box eliminates the need for modifications, making the installation process smooth and hassle-free.
Safety Assurance
Ensuring compatibility reduces the risk of loose connections, overheating, and electrical hazards.
Proper Functionality
A smart switch that fits well in the junction box operates more efficiently and avoids performance issues like intermittent connectivity or faulty wiring.
Aesthetics
A compatible junction box allows the smart switch to sit flush against the wall, maintaining a clean and professional look in your home.
Compliance with Electrical Standards
Compatibility ensures adherence to local electrical codes and standards, which is essential for safety and legal compliance.

4. Example/Use Case

You purchase an Iotics Smart Switch for your living room. Before installation, you check the dimensions of the switch and compare them with your existing junction box. The Iotics switch, designed to fit standard 2-inch depth boxes, aligns perfectly with your setup.

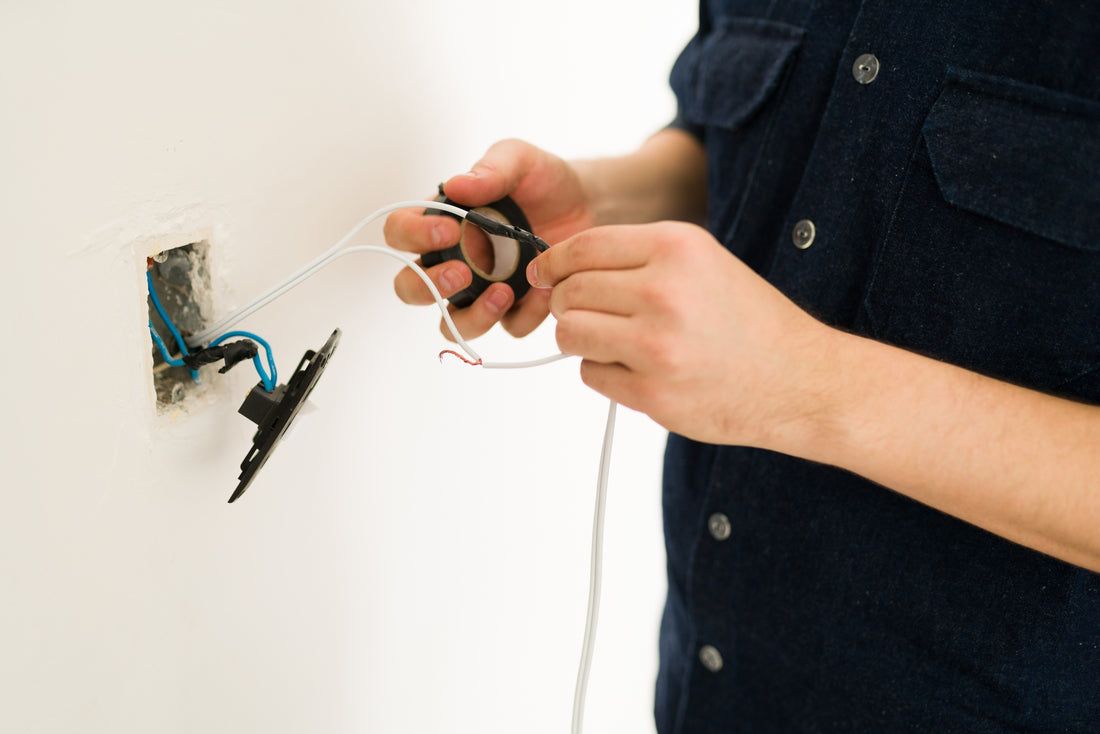

During installation, you notice that the labeled wiring ports on the smart switch make it easy to connect to the live, neutral, and ground wires in the junction box. Within minutes, the switch is securely installed and ready to use, offering seamless control over your lighting.

5. Frequently Asked Questions (FAQs)

How do I check if my junction box is compatible with a smart switch?
Verify the depth, width, and wiring layout of the junction box. Refer to the smart switch’s product specifications for the required dimensions and wiring requirements.
What if my junction box is too shallow for the smart switch?
You may need to replace the junction box with a deeper one or use a switch model specifically designed for shallow boxes.
Do I need a neutral wire in my junction box for smart switches?
Many modern smart switches require a neutral wire for proper operation. Check your junction box for a white neutral wire before purchasing a smart switch.
Are all junction boxes compatible with smart switches?
Not all junction boxes are compatible. Older boxes may lack sufficient space or wiring configurations for advanced smart switches.
Can I use a smart switch with a metal junction box?
Yes, but ensure proper grounding and check for Wi-Fi signal interference, as metal boxes can sometimes hinder connectivity.
